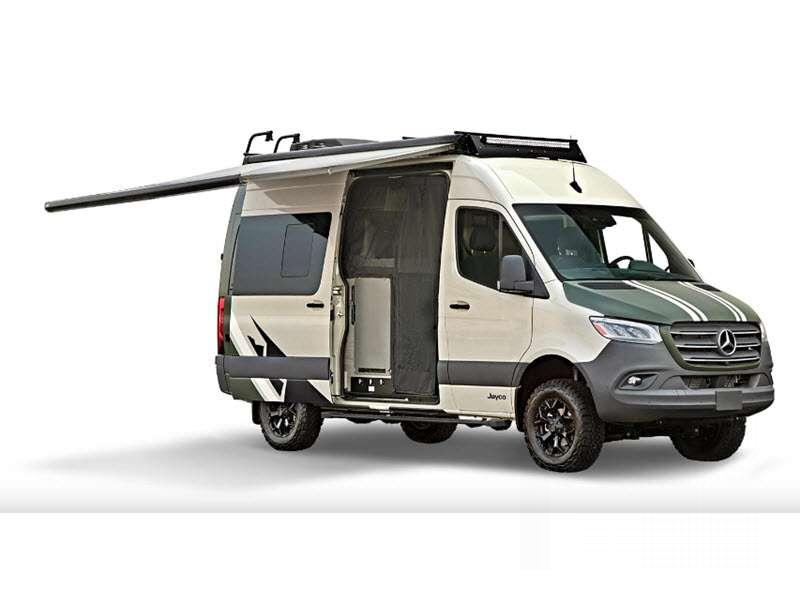

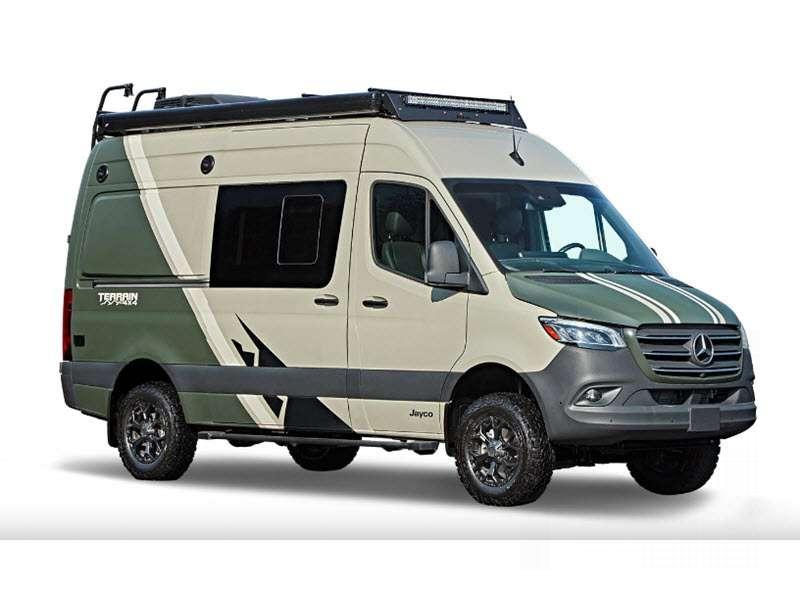

The Jayco Terrain Class B diesel motorhome is small but mighty with rugged all-terrain handling and luxurious amenities! You'll have an exceptional driving experience thanks to the JRIDE ride and handling package, and the all-wheel drive is going to make it impossible to miss out on the new course you want to chart.

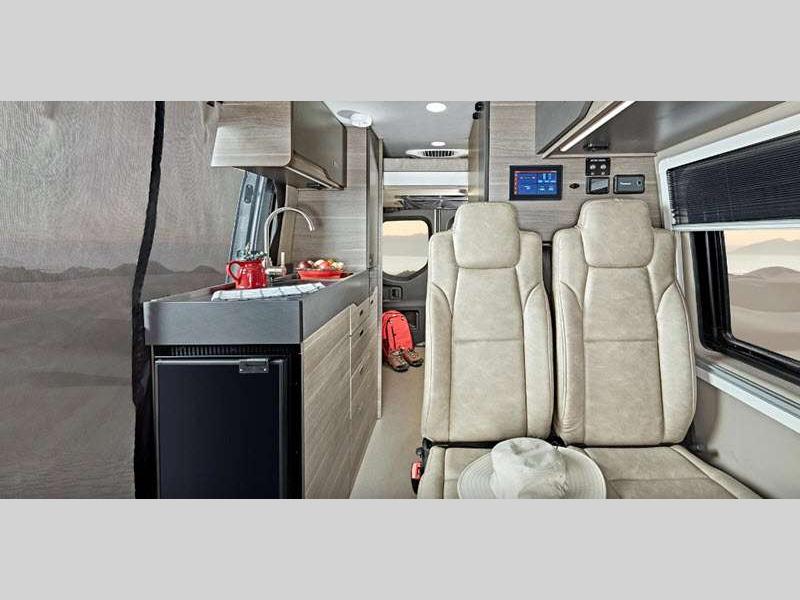

You can stay powered up with the 48V-210 amp hour smart lithium battery that provides 10kW hours of power, plus there is a Starlink satellite internet system that will help keep you connected while you're out in nature. Tecnoform cabinets throughout provide a modern look to your van and the dual bench seats with slide/recline will let you relax after a long hike. There is also a rear garage with L-track mounts to keep your gear secure.



You can do it all with the Jayco Terrain Class B diesel motorhome!

  • Specifications

    Sleeps 2
    Length 19 ft 7 in
    Ext Width 7 ft 1 in
    Ext Height 10 ft 1 in
    Int Height 6 ft 1 in
    Interior Color Serenity

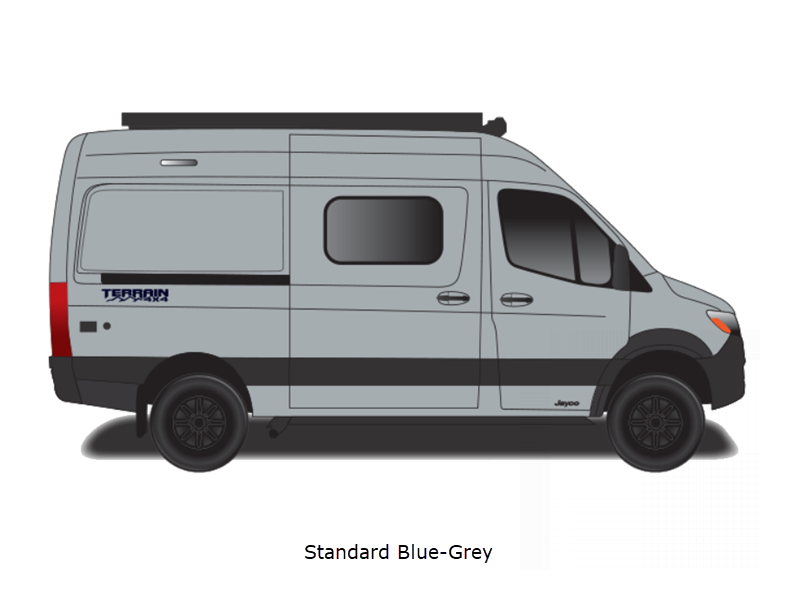

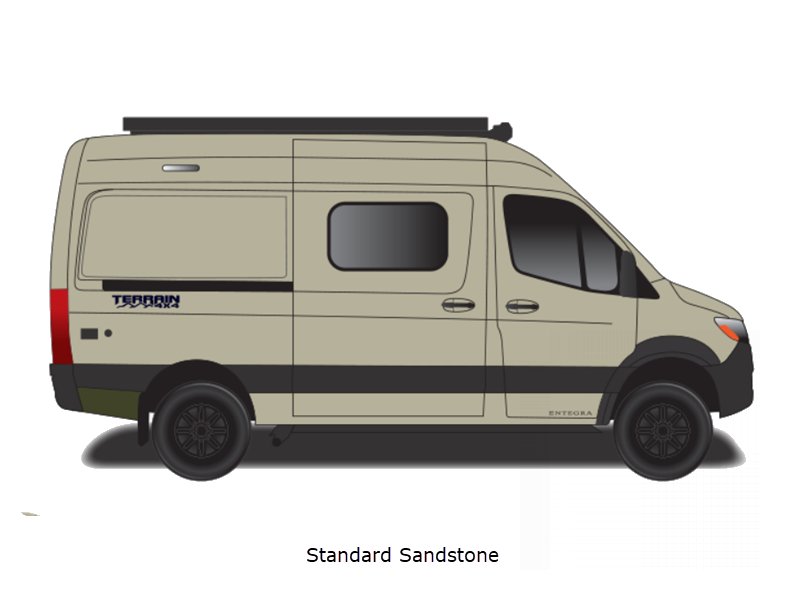

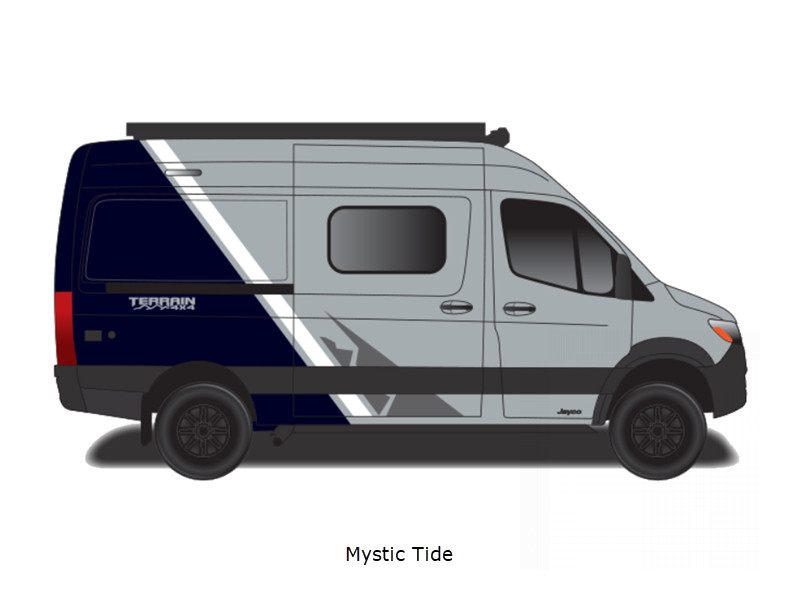

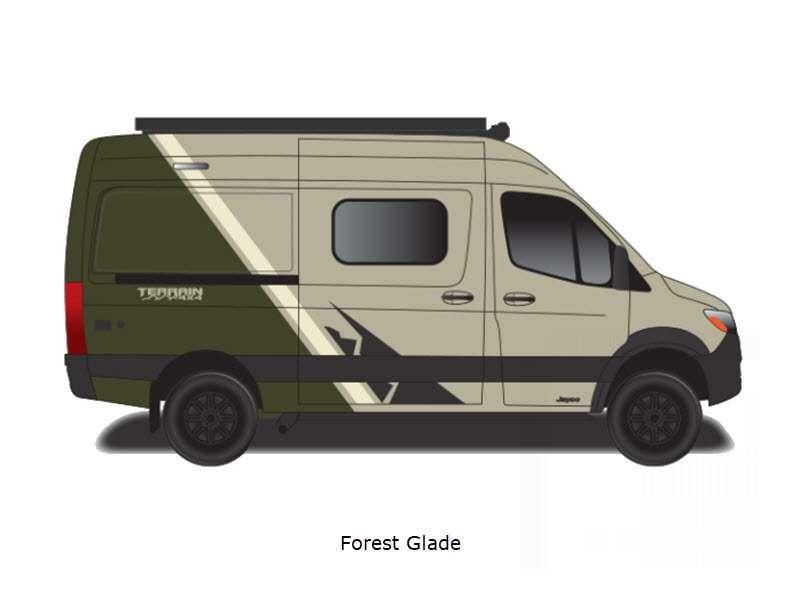

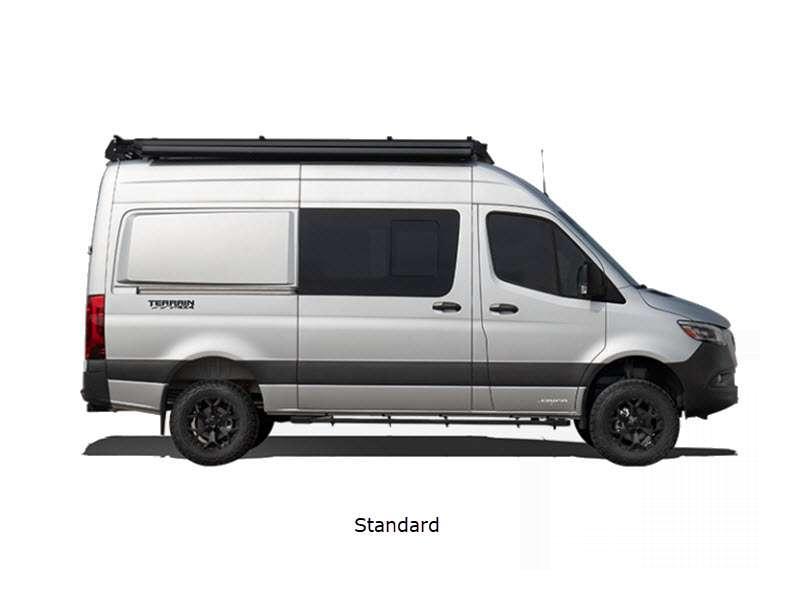

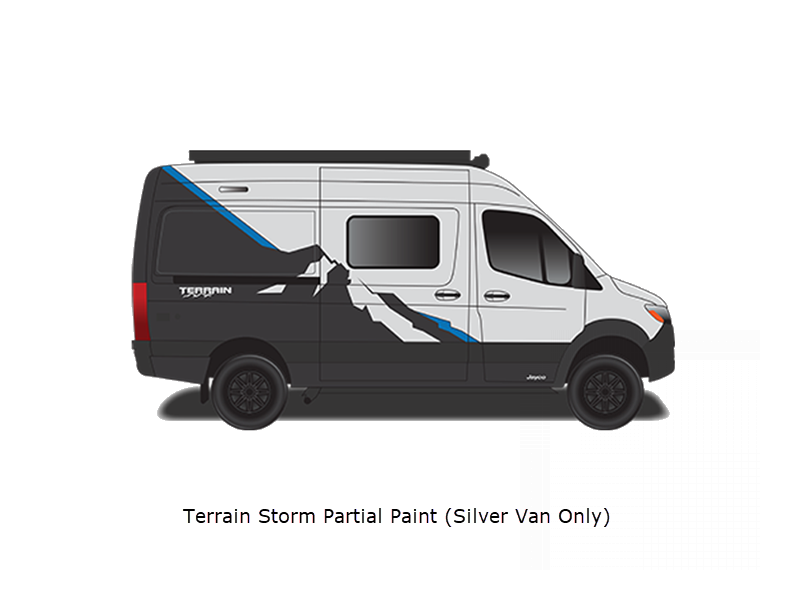

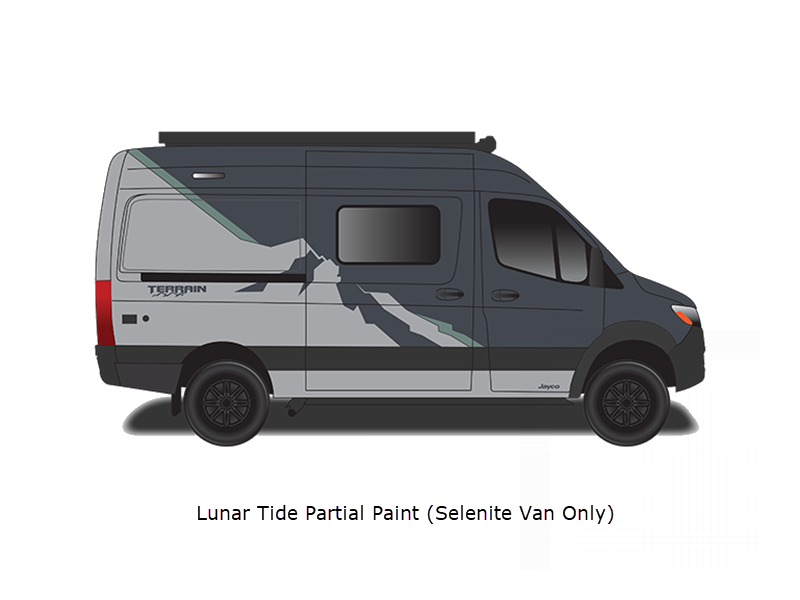

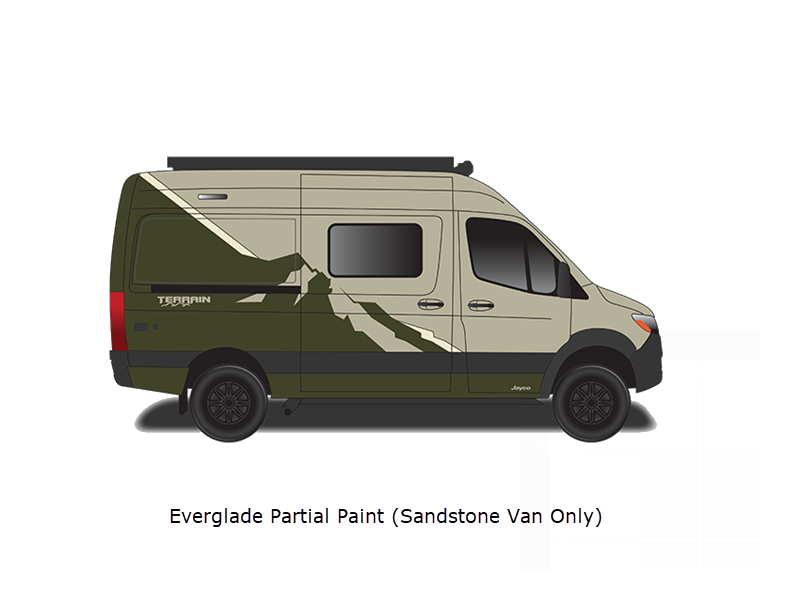

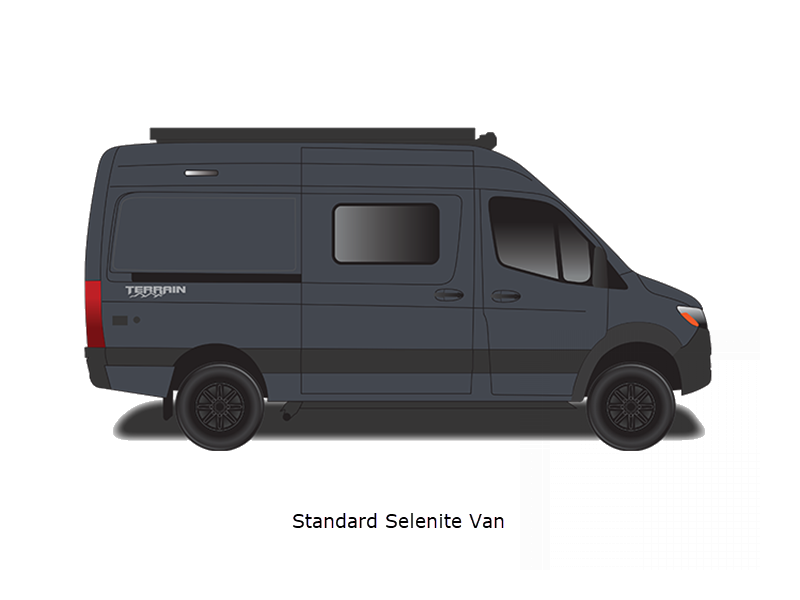

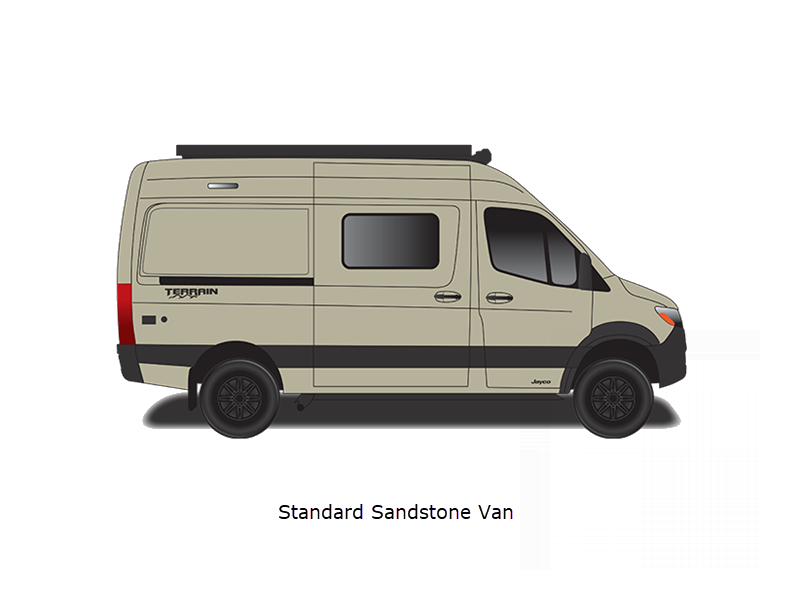

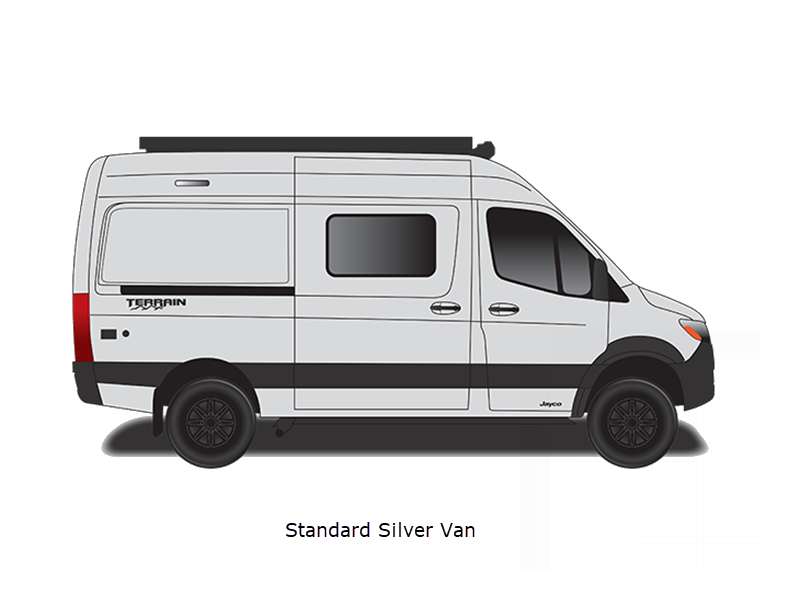

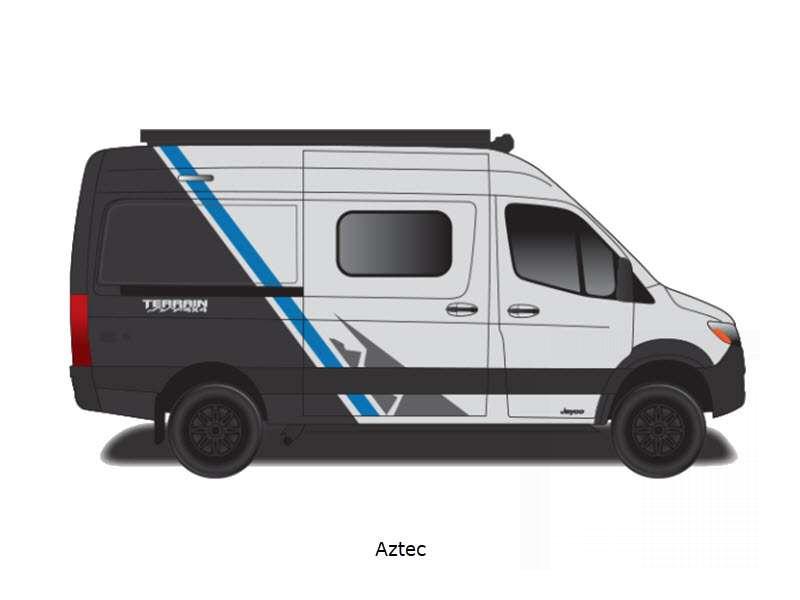

    Exterior Color Silver, Sandstone, Blue-Grey. Optional Partial Paint; Aztec w/Silver, Forest Glade w/Sandstorm, Mystic Tide w/Blue-Grey
    Hitch Weight 5000 lbs
    GVWR 9050 lbs
    Fresh Water Capacity 21 gals
    Grey Water Capacity 21 gals
    Black Water Capacity 4.8 gals
    Tire Size BFGoodrich All-Terrain T/A KO2
    Fuel Type Diesel
    Engine 2.0L 4-Cylinder
    Chassis Mercedes Benz Sprinter 2500
    Horsepower 211 hp
    Fuel Capacity 24 gals
    Wheelbase 144 in
    Number Of Bunks 1
    Torque 332 ft-lb
    Refrigerator Type DC
    Refrigerator Size 3 cu ft
    Number of Awnings 1
    Axle Weight Front 4410 lbs
    Axle Weight Rear 5360 lbs
    AC BTU 13500 btu
    Awning Info Carefree Armless with LED Lights and Wind Sensor
    Gross Combined Weight 13930 lbs
    Shower Type Wet/Bath Shower
    Electrical Service 30 amp

Terrain Features:

Standard Features (2024)



Standard Driving Equipment

  • Mercedes-Benz® Sprinter 2500 AWD van with 144-in. wheelbase
  • GVWR- 9,050 lb.
  • GCWR- 13,930 lb.
  • 2.0L 4-cylinder diesel engine with 211 HP and 332 ft. lb. torque
  • 9-speed automatic transmission
  • 250-amp alternator
  • 5,000 lb. rear hitch receiver with 7 pin connector
  • 12V chassis battery
  • 24.5 gal. fuel tank (diesel)
  • 5.8 gal DEF Tank

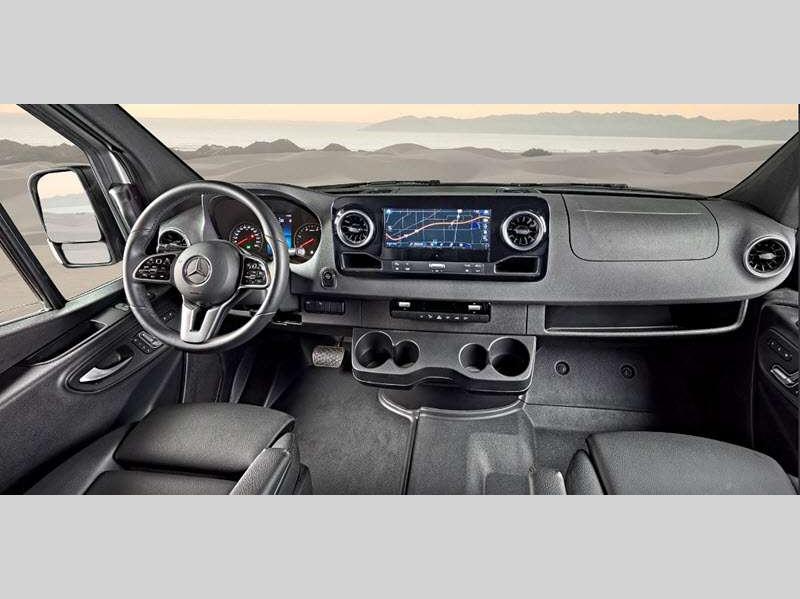

  • 10.25 in. integrated Mercedes-Benz® MBUX infotainment center with GPS, Apple® CarPlay™ and Android Auto™
  • Power folding/heated side-view mirrors
  • Heated power swivel driver/passenger seats
  • Leather-wrapped tilt steering wheel with integrated controls
  • Smartphone tray with wireless charging
  • Parking package with 360° camera
  • Backup camera
  • Active Distance Assist DISTRONIC®
  • Active lane keeping assist
  • Crosswind assist
  • Hill start assist
  • Brake assist plus
  • Traffic sign assist
  • Attention assist
  • Breakdown management
  • Emergency call system
  • Driver and passenger airbags
  • Tire pressure monitoring system (TPMS)
  • Rain-sensing windshield wipers
  • Headlight assistant
  • LED high performance headlights
  • Third brake light
  • Power windows and door locks
  • Privacy shades for cab windows
  • Remote keyless entry

Standard Exterior Features

  • LED-lit running boards for cab and entry doors
  • Fold-down exterior table
  • Daytime running headlamps
  • 48V-210 amp hour smart lithium battery providing 10KW hours of power
  • Prepped for auto engine start with high idle
  • 3,500W inverter
  • 2nd 48V alternator dedicated to lithium battery
  • House battery disconnect switch
  • 200W of roof-mounted solar panels
  • Slow charge solar panel for chassis battery
  • Portable solar plug
  • 30-amp electrical service with detachable power cord
  • 120V exterior outlet
  • Heated grey tank (12V pad) with skid plate
  • Interior-mounted fresh water tank
  • LED-lit holding tank valves
  • Utility center with water controls and outside hose
  • City water connection
  • Winterization drain system
  • 12V demand water pump
  • Water filtration system

Standard Interior Features

  • Custom-molded, vinyl-wrapped ABS interior wall panels
  • Soft-touch vinyl ceiling
  • High-intensity LED ceiling lights
  • Tecnoform® European-style, cabinetry
  • Durable rubber flooring
  • Firefly total coach control system with wall-mounted touchscreen and mobile app
  • MaxxAir Deluxe roof vent
  • 120V/USB outlets throughout
  • Side screen door with magnetic and zipper close offs
  • Removable privacy shade for sliding door window
  • Rear screen door with roll-up and black out capabilities
  • Rear dual-pane acrylic window with cassette shades
  • (2) sliding vented windows

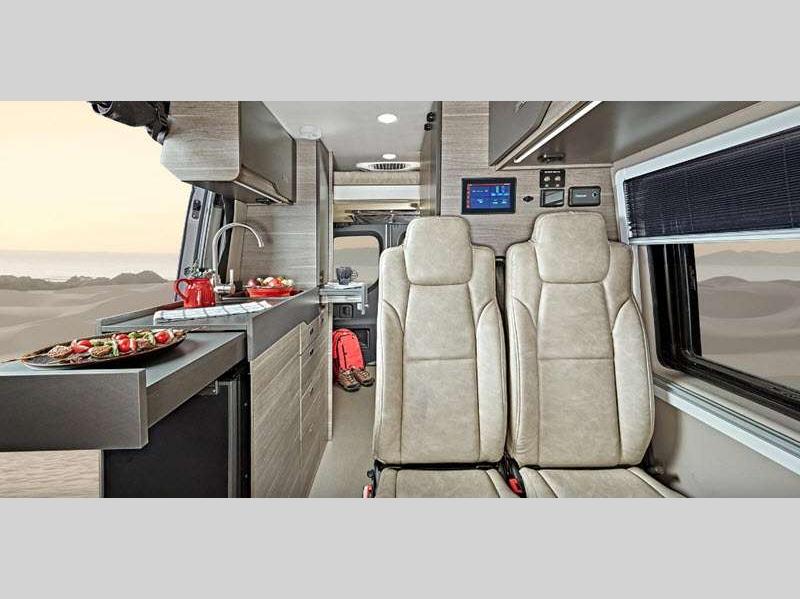

  • (2) additional cab bucket seats with slide and recline features
  • Removable/adjustable table
  • JBL® Flip 6 removable wireless Bluetooth speaker

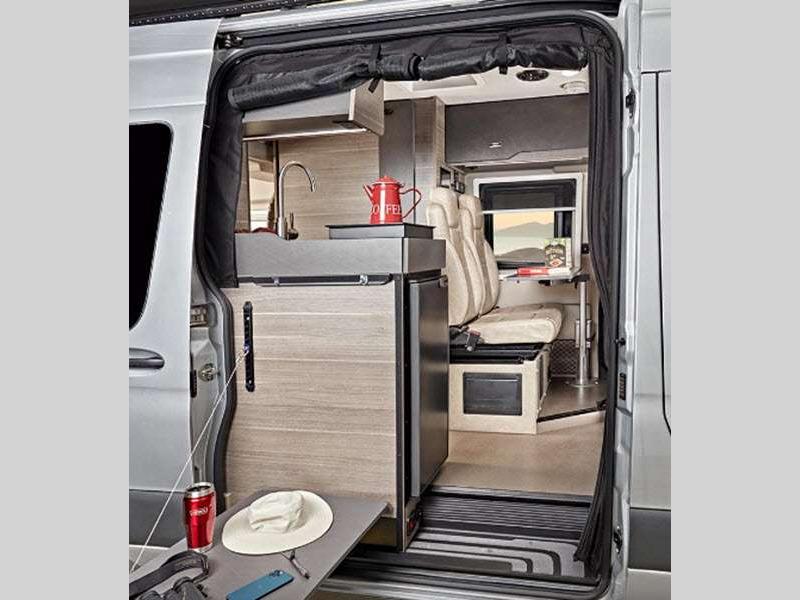

  • Tecnoform® pull-out kitchen countertop extension
  • Pantry
  • 3 cu.ft. DC refrigerator
  • Portable induction cooktop
  • Stainless-steel sink
  • Drop-down overhead bed with 750 lb. capacity
  • Fiberglass side pods create larger sleeping surface

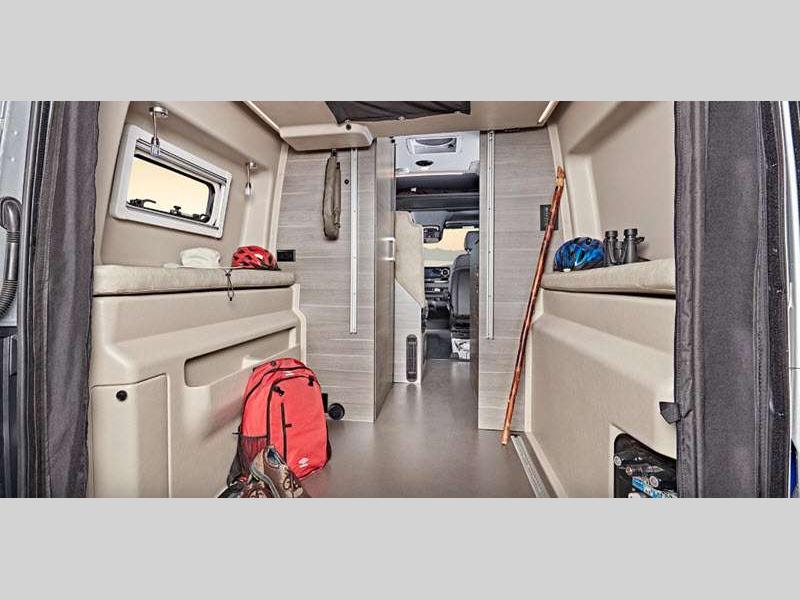

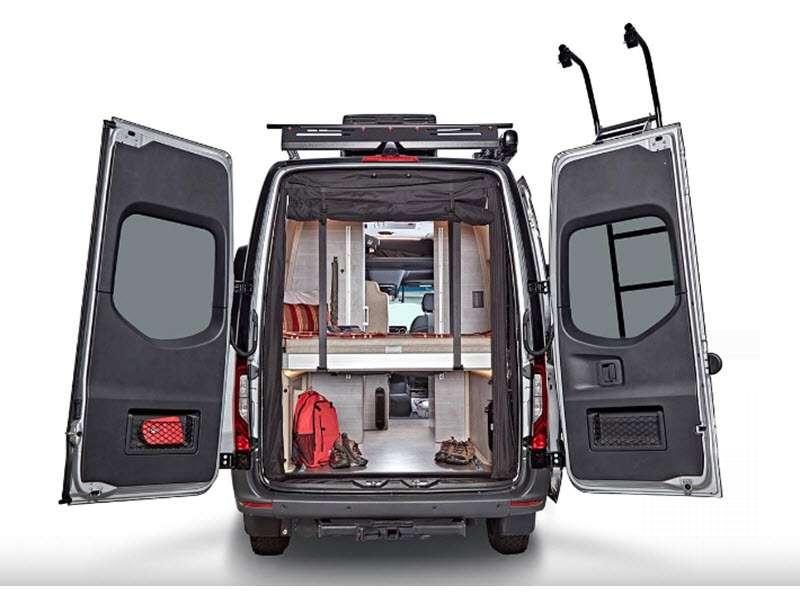

  • Rear garage under bed with L-track mounts for securing cargo
  • (2) recessed under-bed storage bags

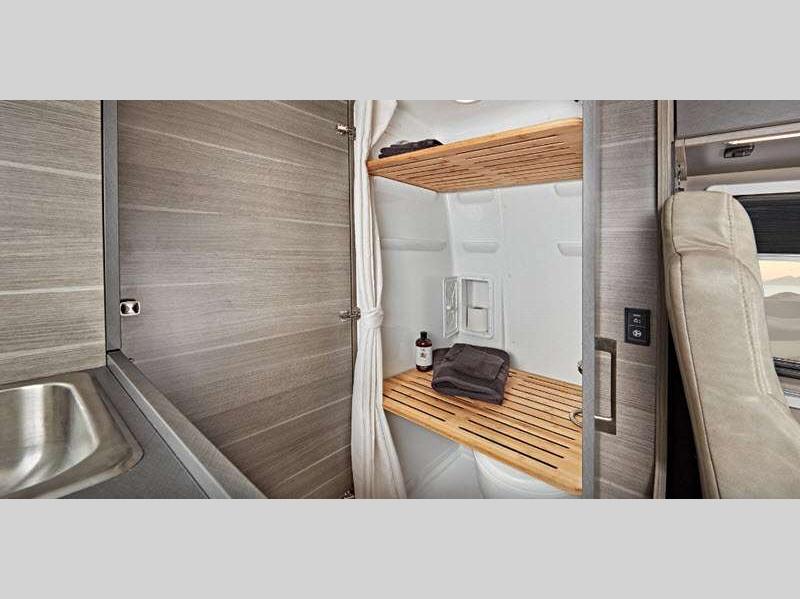

  • All-in-one wet bath with shower and cassette toilet
  • Aqua View® SHOWERMI$ER™ water management system
  • Removable bamboo shelf in wet bath
  • Retractable clothes line in shower
  • Powered roof vent in bathroom
  • Seatbelts in all seating locations
  • Smoke alarm
  • Carbon monoxide detector
  • Fire extinguisher

Customer Value Package (Mandatory)

  • JRIDE®: Koni® shocks, heavy-duty rear stabilizer bar
  • Carefree armless patio awning with LED light strip and wind sensor

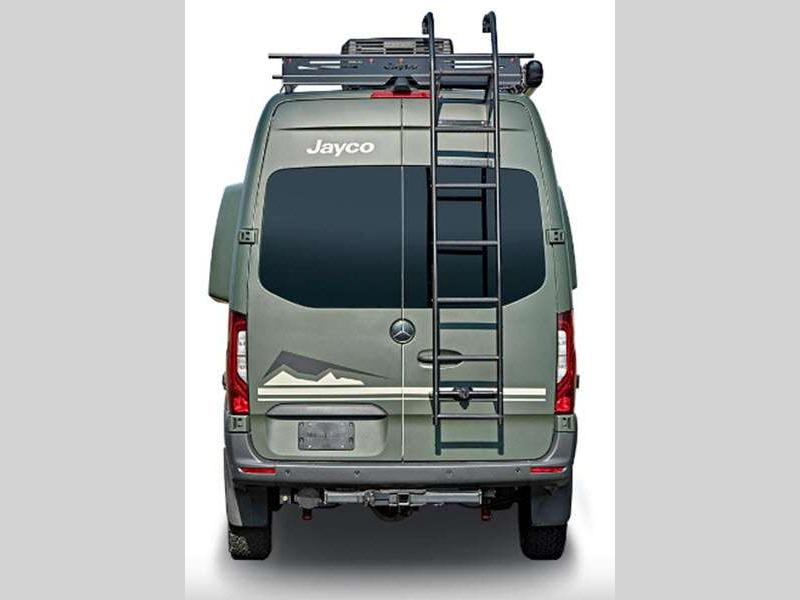

  • Double roof rack and moveable roof ladder
  • Front and rear wind deflectors with front LED light bar
  • Timberline hydronic heating system with LED touchscreen control
  • 13,500 BTU 48V Coleman®-Mach® 10 air conditioner
  • Black aluminum wheels with BFGoodrich® All-Terrain T/A® KO2® tires
  • Starlink satellite internet system

Please see us for a complete list of features and available options.

All standard features and specifications are subject to change.

All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.

Due to the current environment, our features and options are subject to change due to material availability.
